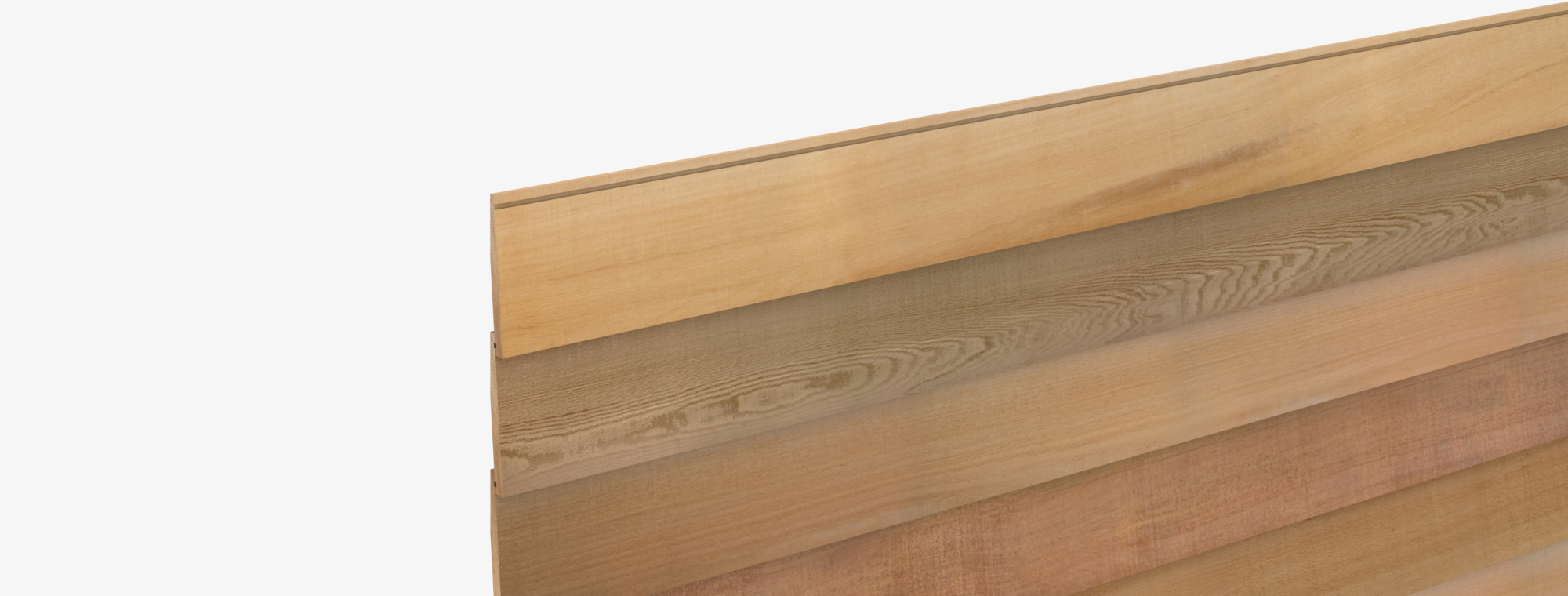

CP1268
Bevel Back

1CP1268

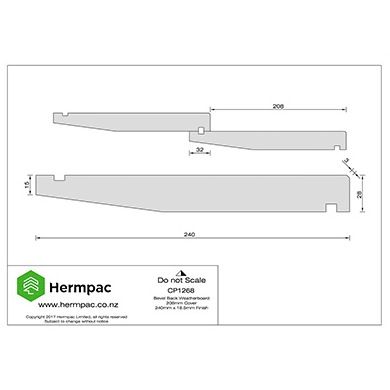

Profile Drawing

2MasterSpec - Horizontal

CLICK HERE for Masterspec Document

3Installation Specification - Bevel Back Direct Fixed

4HDF-BEVELBACK-000

Drawing Index

5HDF-BEVELBACK-100

Bevel Back Weatherboard System Profiles

6HDF-BEVELBACK-101

Trim and Moulding Profiles

7HDF-BEVELBACK-200

Window Head Detail,

Aluminium Joinery

8HDF-BEVELBACK-201

Window Sill Detail,

Aluminium Joinery

9HDF-BEVELBACK-202

Window Jamb Detail,

Aluminium Joinery

10HDF-BEVELBACK-210

Door Head Detail,

Aluminium Joinery

11HDF-BEVELBACK-211

Door Sill Detail,

Aluminium Joinery

12HDF-BEVELBACK-212

Door Jamb Detail,

Aluminium Joinery

13HDF-BEVELBACK-220

Window Head Detail,

Timber Joinery

14HDF-BEVELBACK-221

Window Sill Detail,

Timber Joinery

15HDF-BEVELBACK-222

Window Jamb Detail,

Timber Joinery

16HDF-BEVELBACK-300

Internal Corner HP110

17HDF-BEVELBACK-301

Internal Corner Scribed

18HDF-BEVELBACK-302

Internal Corner Boxed

19HDF-BEVELBACK-303

Enclosed Deck Balustrade to Wall Junction

20HDF-BEVELBACK-400

External Corner Boxed

21HDF-BEVELBACK-401

External Corner Soaker

22HDF-BEVELBACK-410

General Detail Direct Fix,

Stain Finish

23HDF-BEVELBACK-411

General Detail Direct Fix,

Paint Finish

24HDF-BEVELBACK-500

Base of Wall, Concrete

25HDF-BEVELBACK-501

Base of Wall, Timber

26HDF-BEVELBACK-502

Direct Fix at Enclosed Deck

27HDF-BEVELBACK-600

Roof/Wall Junction

28HDF-BEVELBACK-601

Soffit Detail, Overhang

29HDF-BEVELBACK-602

Eaves Detail, No Overhang

30HDF-BEVELBACK-800

Meter Box Detail

31HDF-BEVELBACK-801

Pipe Penetration Detail

32HDF-BEVELBACK-802

Pipe Penetration Plan Detail
