CP842
Rusticated

Choose a category
Species Options

Generic Construction

CP842

1CP842

Profile Drawing

BRANZ Appraisal 658

2BRANZ Appraisal 658

BRANZ Appraisal 658

BRANZ Appraisal 1182

3BRANZ Appraisal 1182

BRANZ Appraisal 1182

CODEMARK CMNZ30037

4CODEMARK CMNZ30037

CODEMARK CMNZ30037

CODEMARK CMNZ30139

5CODEMARK CMNZ30139

CODEMARK CMNZ30139

MasterSpec - Horizontal

6MasterSpec - Horizontal

CLICK HERE for Masterspec Document

Installation Specification - Rusticated Cavity Fixed

7Installation Specification - Rusticated Cavity Fixed

Installation Specification - ACCOYA Rusticated Cavity Fixed

8Installation Specification - ACCOYA Rusticated Cavity Fixed

HC-RUST-000-001

9HC-RUST-000-001

Drawing Index

HC-RUST-002

10HC-RUST-002

Isometric View

HC-RUST-100

11HC-RUST-100

Rusticated Weatherboard System Profiles

HC-RUST-101

12HC-RUST-101

Trim and Moulding Profiles

HC-RUST-102

13HC-RUST-102

Grooved Fascia Boards

HC-RUST-103

14HC-RUST-103

Accessories

HC-RUST-200

15HC-RUST-200

Window Head Detail,

Aluminium Joinery

HC-RUST-201

16HC-RUST-201

Window Sill Detail,

Aluminium Joinery

HC-RUST-202

17HC-RUST-202

Window Jamb Detail,

Aluminium Joinery

HC-RUST-202A

18HC-RUST-202A

Window Jamb Detail,

Aluminium Joinery

HC-RUST-202B

19HC-RUST-202B

Window Jamb Detail,

Aluminium Joinery

HC-RUST-210

20HC-RUST-210

Door Head Detail,

Aluminium Joinery

HC-RUST-211

21HC-RUST-211

Door Sill Detail,

Aluminium Joinery

HC-RUST-212

22HC-RUST-212

Door Jamb Detail,

Aluminium Joinery

HC-RUST-212A

23HC-RUST-212A

Door Jamb Detail,

Aluminium Joinery

HC-RUST-212B

24HC-RUST-212B

Door Jamb Detail,

Aluminium Joinery

HC-RUST-220

25HC-RUST-220

Garage Door Head Detail

HC-RUST-222A

26HC-RUST-222A

Garage Door Jamb Detail

HC-RUST-300

27HC-RUST-300

Internal Corner HP41

HC-RUST-303

28HC-RUST-303

Enclosed Deck Balustrade to Wall Junction

HC-RUST-307

29HC-RUST-307

Internal Corner HP370

HC-RUST-310

30HC-RUST-310

Internal Corner HP360

HC-RUST-400

31HC-RUST-400

External Corner Boxed

HC-RUST-401

32HC-RUST-401

External Corner HP40

HC-RUST-402

33HC-RUST-402

External Corner HP42

HC-RUST-403

34HC-RUST-403

External Corner HP202 & HP201

HC-RUST-404

35HC-RUST-404

External Corner HP310

HC-RUST-405

36HC-RUST-405

External Corner HP321

HC-RUST-410

37HC-RUST-410

General Detail Cavity Fix,

Stain Finish

HC-RUST-410A

38HC-RUST-410A

Structural Cavity Fix, Stain Finish

HC-RUST-410S

39HC-RUST-410S

General Cavity Fix, Screw Fixing

HC-RUST-410SS

40HC-RUST-410SS

Structural Detail Cavity Fix, Screw Fixing

HC-RUST-411

41HC-RUST-411

General Detail Cavity Fix,

Paint Finish

HC-RUST-411A

42HC-RUST-411A

Structural Cavity Fix, Paint Finish

HC-RUST-412

43HC-RUST-412

Drained Inter-Storey Joint

HC-RUST-413

44HC-RUST-413

Scarf Join

Stain Finish

HC-RUST-500

45HC-RUST-500

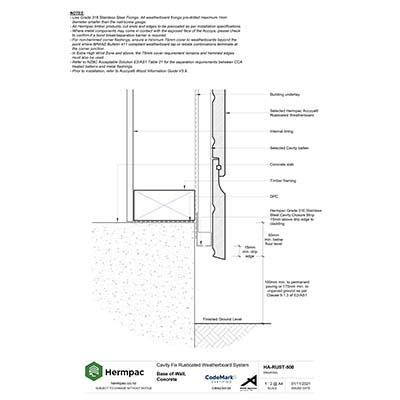

Base of Wall, Concrete

HC-RUST-501

46HC-RUST-501

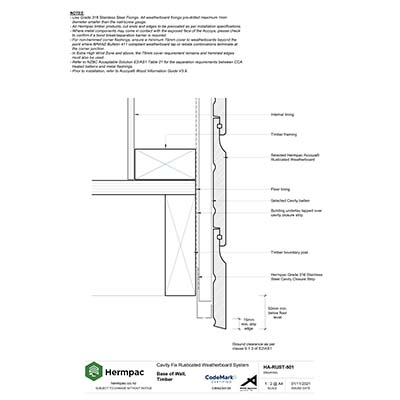

Base of Wall, Timber

HC-RUST-502

47HC-RUST-502

Cavity at Enclosed Deck

HC-RUST-600

48HC-RUST-600

Roof/Wall Junction

HC-RUST-601

49HC-RUST-601

Soffit Detail, Overhang

HC-RUST-601A

50HC-RUST-601A

Reverse Sloping Soffit Detail

HC-RUST-601B

51HC-RUST-601B

Soffit Detail, Upper Storey

HC-RUST-602

52HC-RUST-602

Eaves Detail, No Overhang

HC-RUST-700

53HC-RUST-700

Parapet Detail

HC-RUST-800

54HC-RUST-800

Meter Box Detail

HC-RUST-801

55HC-RUST-801

Pipe Penetration Detail

HC-RUST-802

56HC-RUST-802

Pipe Penetration Plan Detail

HA-RUST-000-001

57HA-RUST-000-001

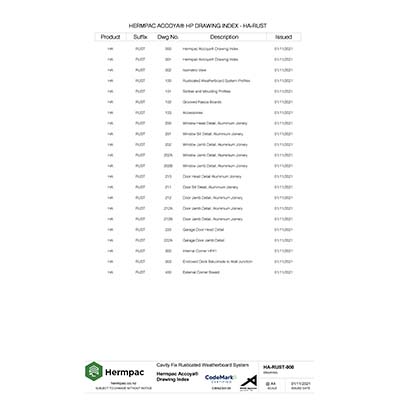

Drawing Index

HA-RUST-002

58HA-RUST-002

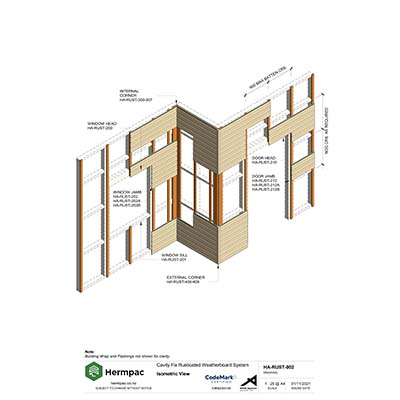

Isometric View

HA-RUST-100

59HA-RUST-100

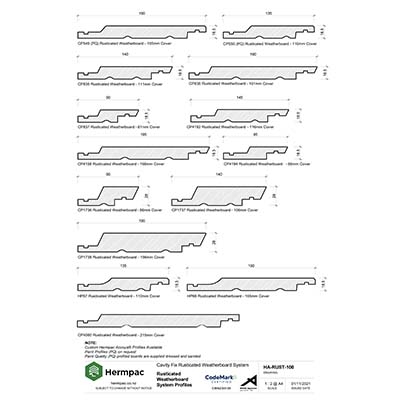

Rusticated Weatherboard System Profiles

HA-RUST-101

60HA-RUST-101

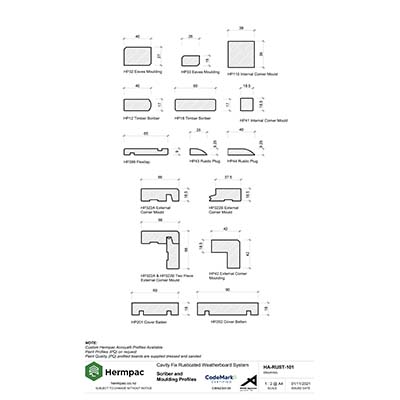

Scriber and Moulding Profiles

HA-RUST-102

61HA-RUST-102

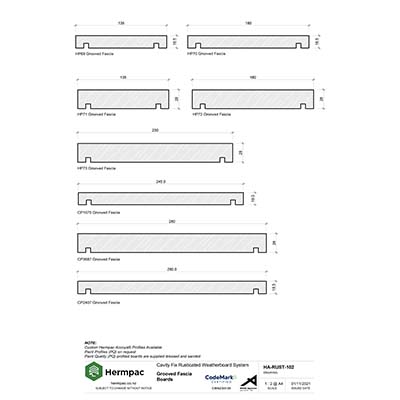

Grooved Fascia Boards

HA-RUST-103

62HA-RUST-103

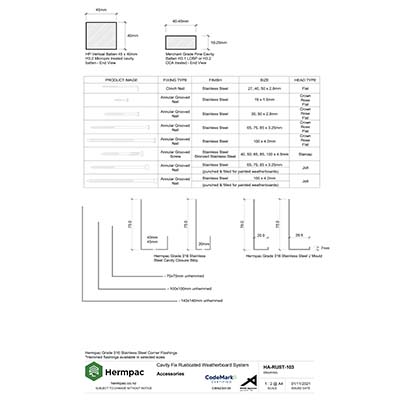

Accessories

HA-RUST-200

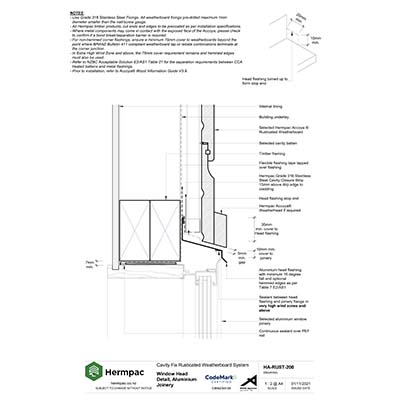

63HA-RUST-200

Window Head Detail, Aluminium Joinery

HA-RUST-201

64HA-RUST-201

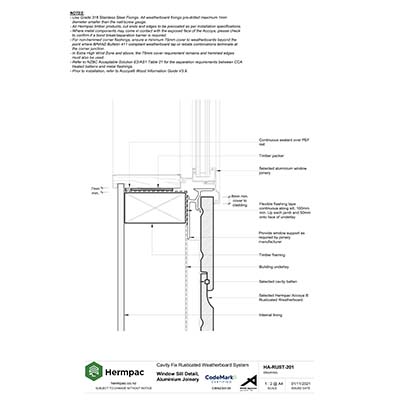

Window Sill Detail, Aluminium Joinery

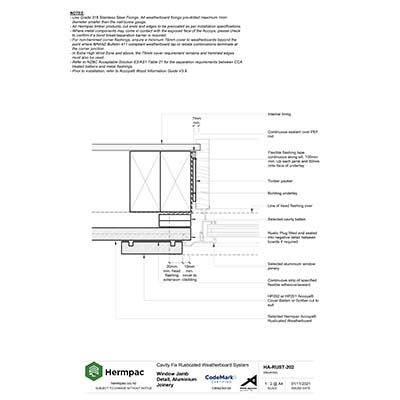

HA-RUST-202

65HA-RUST-202

Window Jamb Detail, Aluminium Joinery

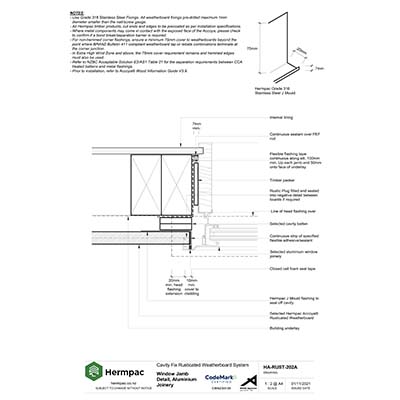

HA-RUST-202A

66HA-RUST-202A

Window Jamb Detail, Aluminium Joinery

HA-RUST-202B

67HA-RUST-202B

Window Jamb Detail, Aluminium Joinery

HA-RUST-210

68HA-RUST-210

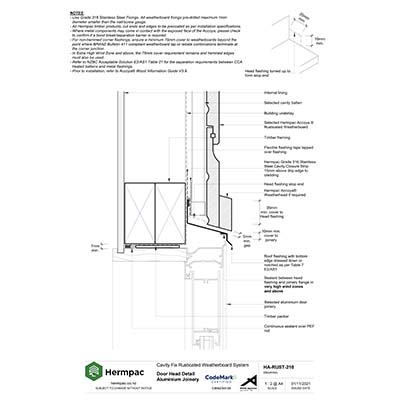

Door Head Detail, Aluminium Joinery

HA-RUST-211

69HA-RUST-211

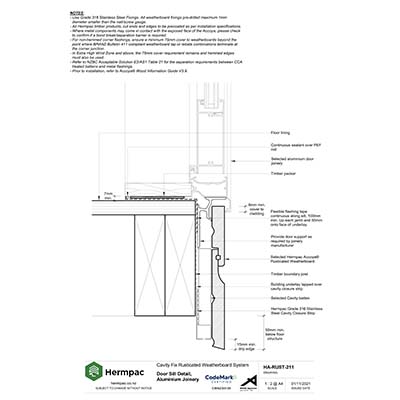

Door Sill Detail, Aluminium Joinery

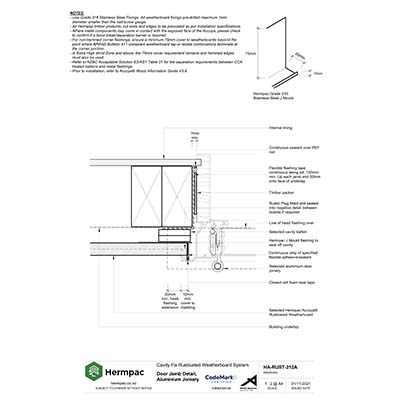

HA-RUST-212A

70HA-RUST-212A

Door Jamb Detail, Aluminium Joinery

HA-RUST-212

71HA-RUST-212

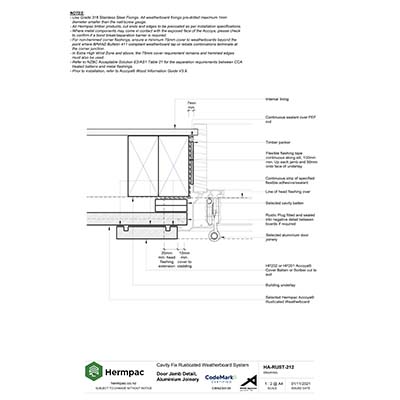

Door Jamb Detail, Aluminium Joinery

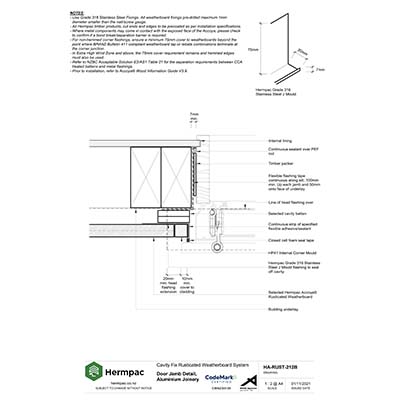

HA-RUST-212B

72HA-RUST-212B

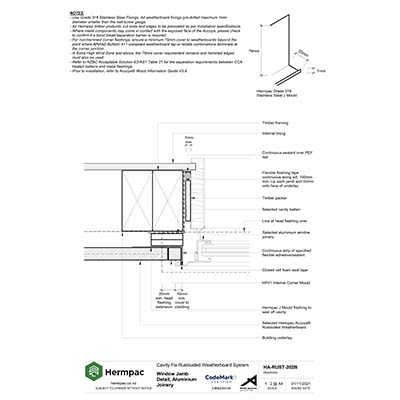

Door Jamb Detail, Aluminium Joinery

HA-RUST-220

73HA-RUST-220

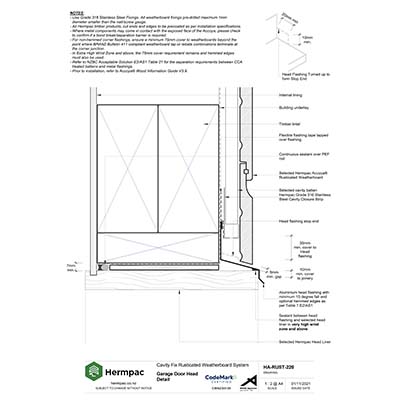

Garage Door Head Detail

HA-RUST-222A

74HA-RUST-222A

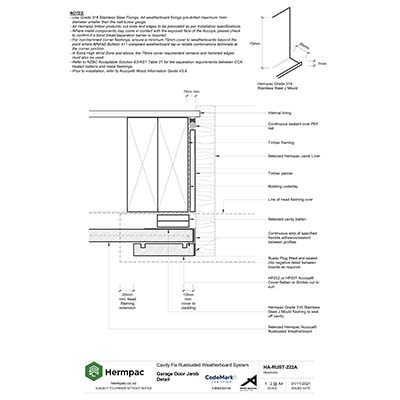

Garage Door Jamb Detail

HA-RUST-300

75HA-RUST-300

Internal Corner HP41

HA-RUST-303

76HA-RUST-303

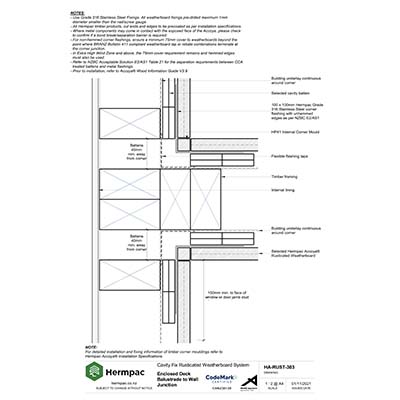

Enclosed Deck Balustrade to Wall Junction

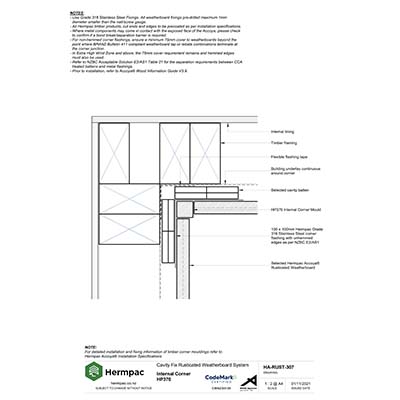

HA-RUST-307

77HA-RUST-307

Internal Corner HP370

HA-RUST-400

78HA-RUST-400

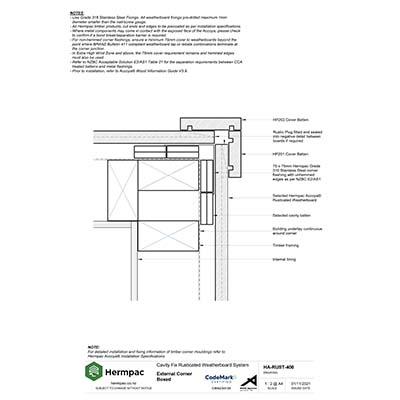

External Corner Boxed

HA-RUST-402

79HA-RUST-402

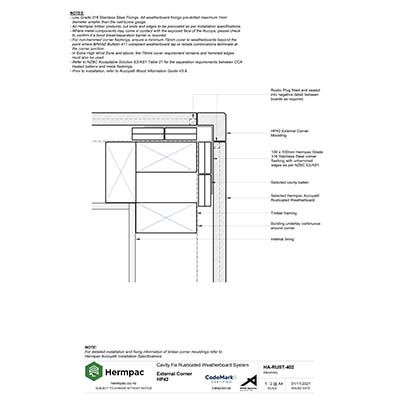

External Corner HP42

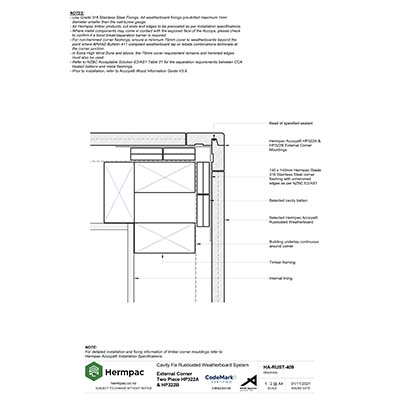

HA-RUST-409

80HA-RUST-409

External Corner Two Piece HP322A & HP322B

HA-RUST-410

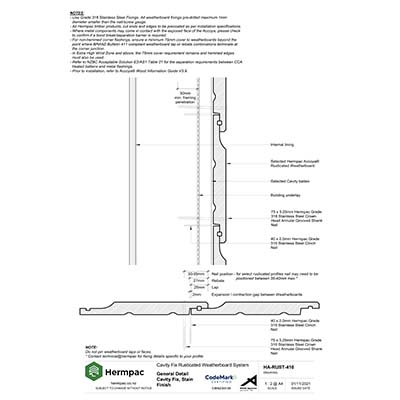

81HA-RUST-410

General Detail Cavity Fix, Stain Finish

HA-RUST-410A

82HA-RUST-410A

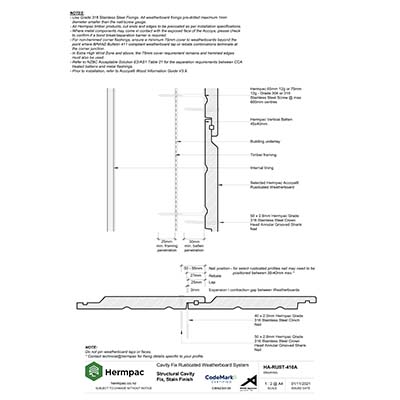

Structural Cavity Fix, Stain Finish

HA-RUST-410S

83HA-RUST-410S

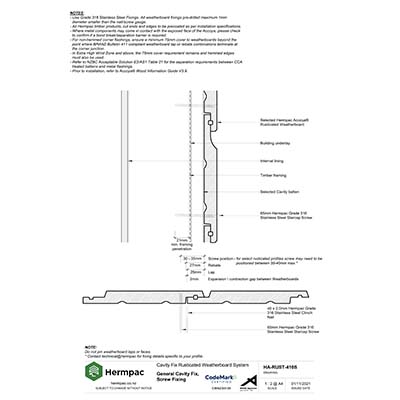

General Cavity Fix, Screw Fixing

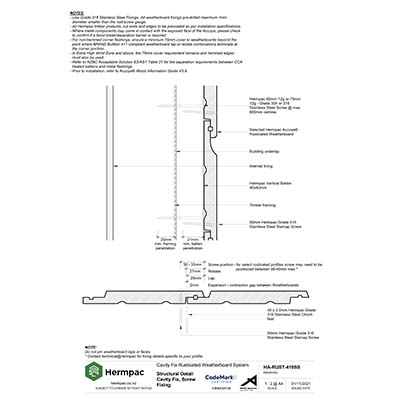

HA-RUST-410SS

84HA-RUST-410SS

Structural Detail Cavity Fix, Screw Fixing

HA-RUST-411

85HA-RUST-411

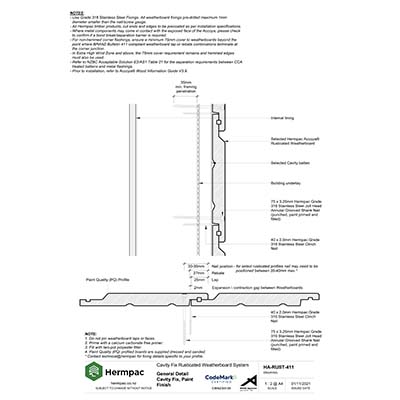

General Detail Cavity Fix, Paint Finish

HA-RUST-411A

86HA-RUST-411A

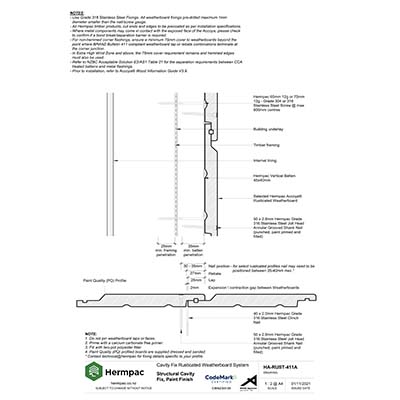

Structural Cavity Fix, Paint Finish

HA-RUST-412

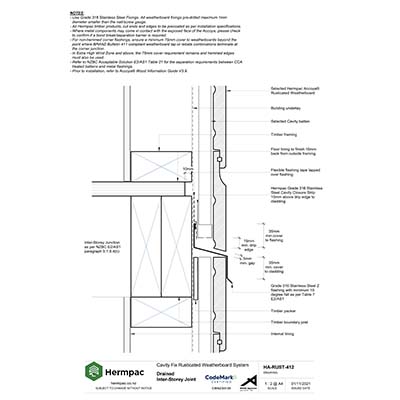

87HA-RUST-412

Drained Inter-Storey Joint

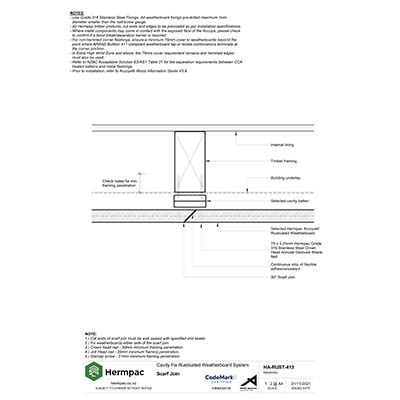

HA-RUST-413

88HA-RUST-413

Scarf Joint

HA-RUST-500

89HA-RUST-500

Base of Wall, Concrete

HA-RUST-501

90HA-RUST-501

Base of Wall, Timber

HA-RUST-502

91HA-RUST-502

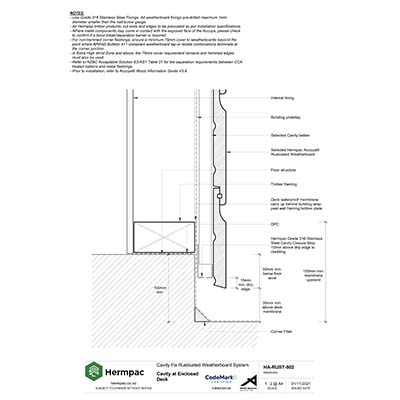

Cavity at Enclosed Deck

HA-RUST-600

92HA-RUST-600

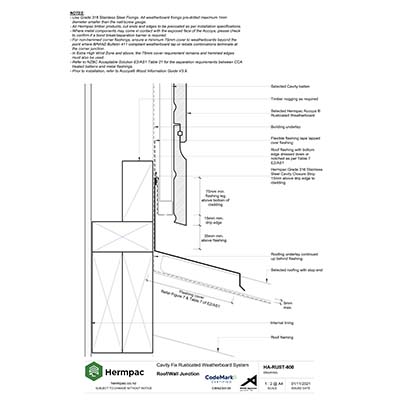

Roof-Wall Junction

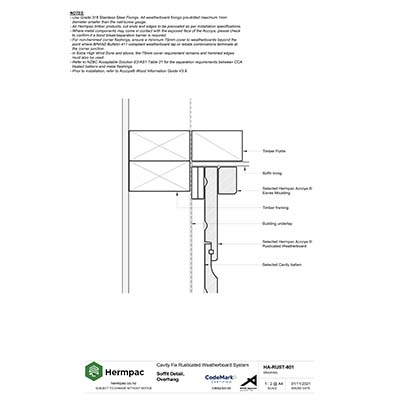

HA-RUST-601

93HA-RUST-601

Soffit Detail, Overhang

HA-RUST-601A

94HA-RUST-601A

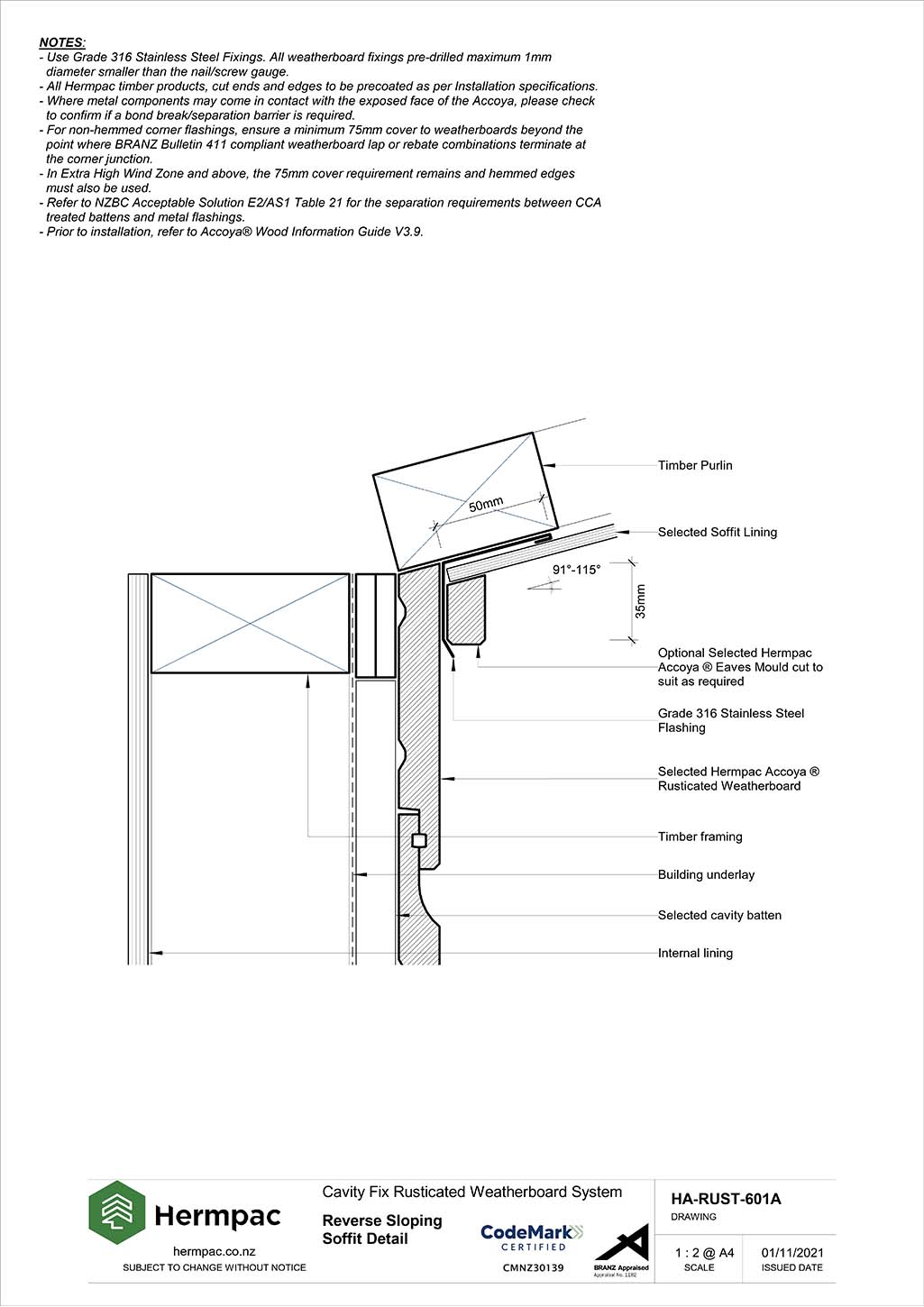

Reverse Sloping Soffit Detail

HA-RUST-601B

95HA-RUST-601B

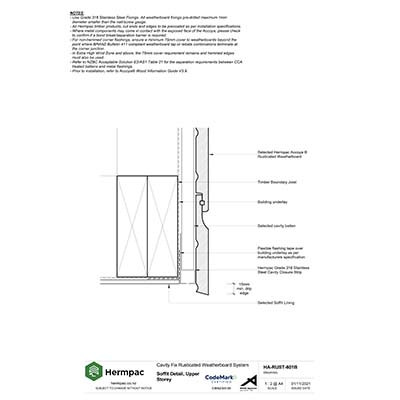

Soffit Detail, Upper Storey

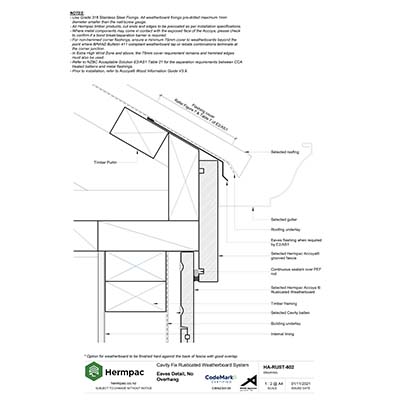

HA-RUST-602

96HA-RUST-602

Eaves Detail, No Overhang

HA-RUST-700

97HA-RUST-700

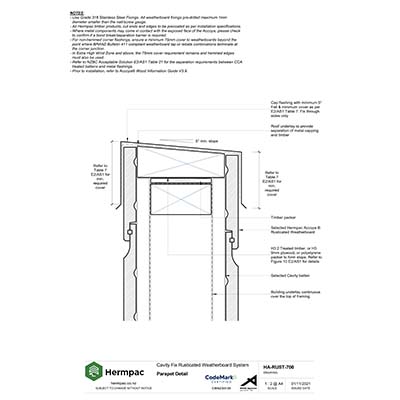

Parapet Detail

HA-RUST-800

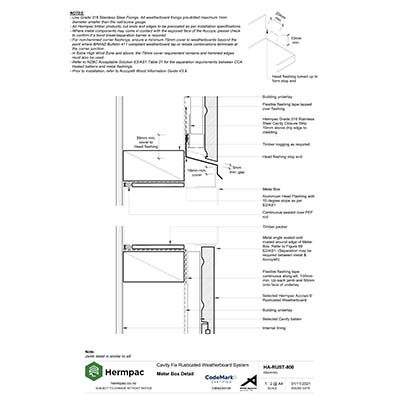

98HA-RUST-800

Meter Box Detail

HA-RUST-801

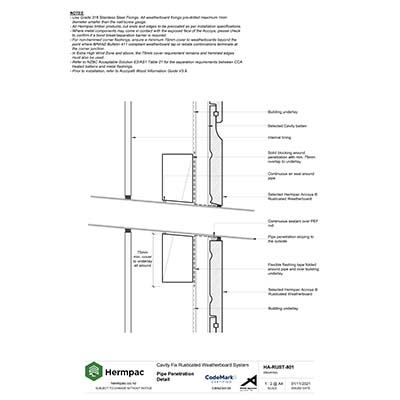

99HA-RUST-801

Pipe Penetration Detail

HA-RUST-802

100HA-RUST-802

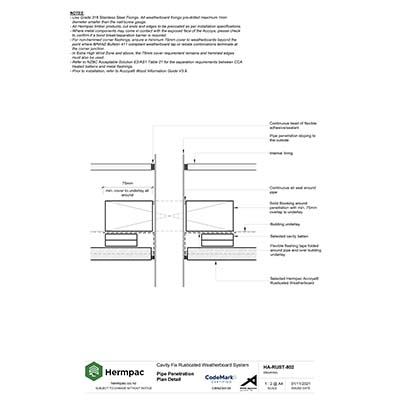

Pipe Penetration Plan Detail
